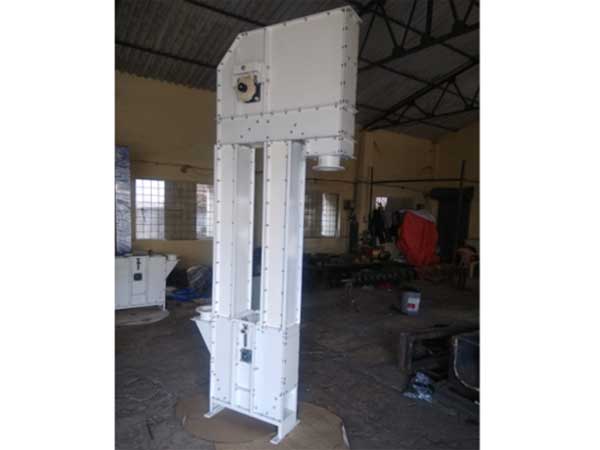

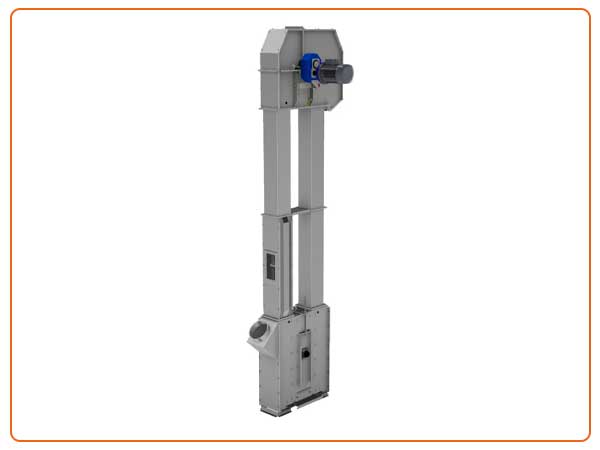

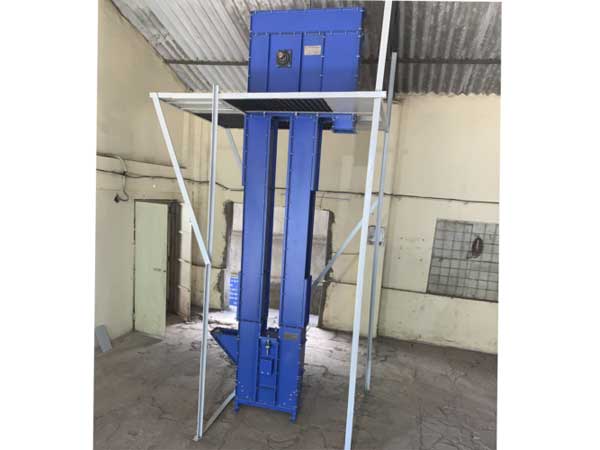

Bucket Elevator
We hold expertise in bringing froth an extensive range of Bucket Elevator that is highly demanded in the market due to its superior performance. We are using high grade raw material and latest technology for manufacturing the elevator according international design and quality standards. For ensuring its quality, a team of our quality experts rigorously test it on different parameters. Apart from this, it is widely used for elevating free flowing or semi free flowing material like grains, feeds and foods to oilseeds, biomass, waste, granular and minerals.
Features of Top Hood
- Pillow block roller bearings with horizontal and vertical adjusting
- Split style hood allows for easy interior accessibility
- Back stop arrangement provided to stop reverse rotation of belt
- Abrasion-resistant discharge lining options at Discharge include UHMWPE
- Inspection ports
- Head have heavy structural frame
- UV resistant HDPE dust seals
- Adjustable throat wiper
Features Standard Casing (Trunk)
- Squaring plates align trunk and eliminate twisted trunk sections
- Bolted 10 – 16 gauge galvanized steel, Powder coated M.S. and stainless steel as per option
- Heavy welded frame with large removable panels on inspection section
- Heavy-duty plastic buckets or M.S. bucket
- Inspection section facilitates belt and splice installation
- Sliding view port can be placed in two positions on inspection section
- Standard PVG belt with a rubber model available
Features of Bottom Boot
- Removable clean out ends
- Belt tension adjuster improves belt’s traction and life
- UV resistant HDPE dust seals
- Self-cleaning and adjustable boot drum
- Boot have heavy structural frame
- Low energy consumption
- Easy assembly operation
- Minimum of maintenance
- Minimized downtime = maximized profit for the end-user
- Bolted construction for easy repair and replacement
- Easy and quick replacement in case of damaged or worn parts without having to dismount the bucket elevator
| Model | Capacity M 3/Hr | TPH for wheat B.D.O. 760 kg/M 3 |
|---|---|---|
|
BE-100 |
3.95 |
3.0 |
|
BE-125 |
8.55 |
6.5 |
|
BE-150 |
20 |
15.0 |
|
BE-200 |
39.5 |
30.0 |
|
BE-250 |
75 |
57.0 |
|
BE-300 |
131 |
100.0 |
|
BE-375 |
197 |
150.0 |
|
BE-450 |
360 |
260.0 |
We Saras Engineering, is the renowned organization affianced in Manufacturing, Supplying and Service Provider comprehensive array of Material Handling System, Pollution Control System, Flow Control Gate, Grain Storage Silo, etc. Located at Pune (Maharashtra, India)
